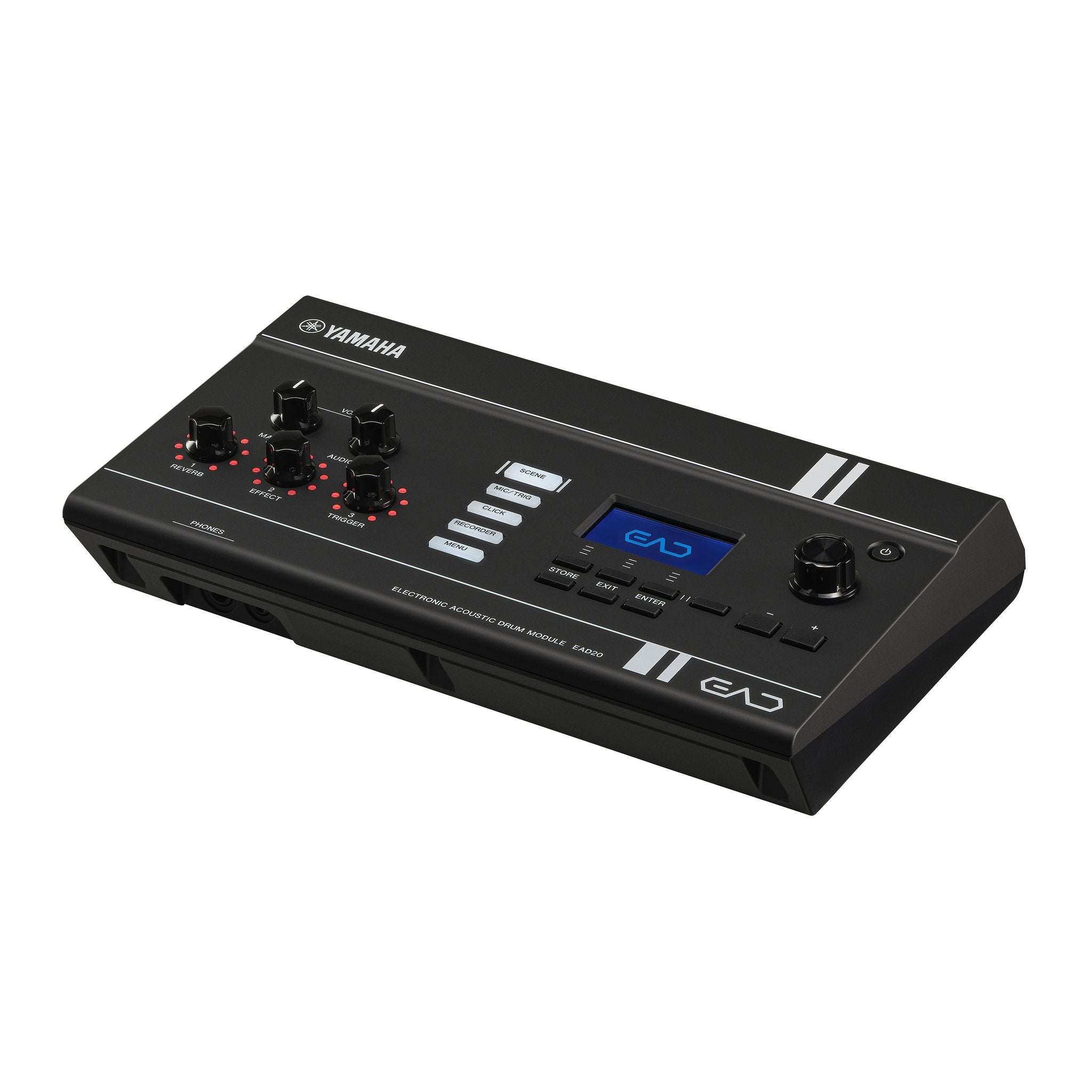

Yamaha EAD20 Electronic Acoustic Drum Module

The Yamaha EAD20 Electronic Acoustic Drum Microphone System streamlines the often complex and cumbersome process of miking drums by integrating microphones, cables, and mixers into a single, user-friendly package. Featuring an enhanced sound engine powered by the SWX100 sound chip, an advanced sensor unit, and expanded connectivity options, the EAD20 makes recording drums and miking live performances more convenient than ever, without compromising on sound quality.

Equipped with four additional splitable trigger inputs—allowing for up to nine total triggers—and an 8-in/10-out USB audio interface, the EAD20 offers exceptional flexibility and expandability for both studio and stage applications. Built-in Kit Modifier knobs, paired with the free EAD Touch App, enable drummers to make real-time adjustments to gain, reverb, and other effects seamlessly during performance. The system also incorporates features introduced in the EAD50, such as recording, sampling, and loop creation, empowering drummers to enhance their creativity and elevate their performances.

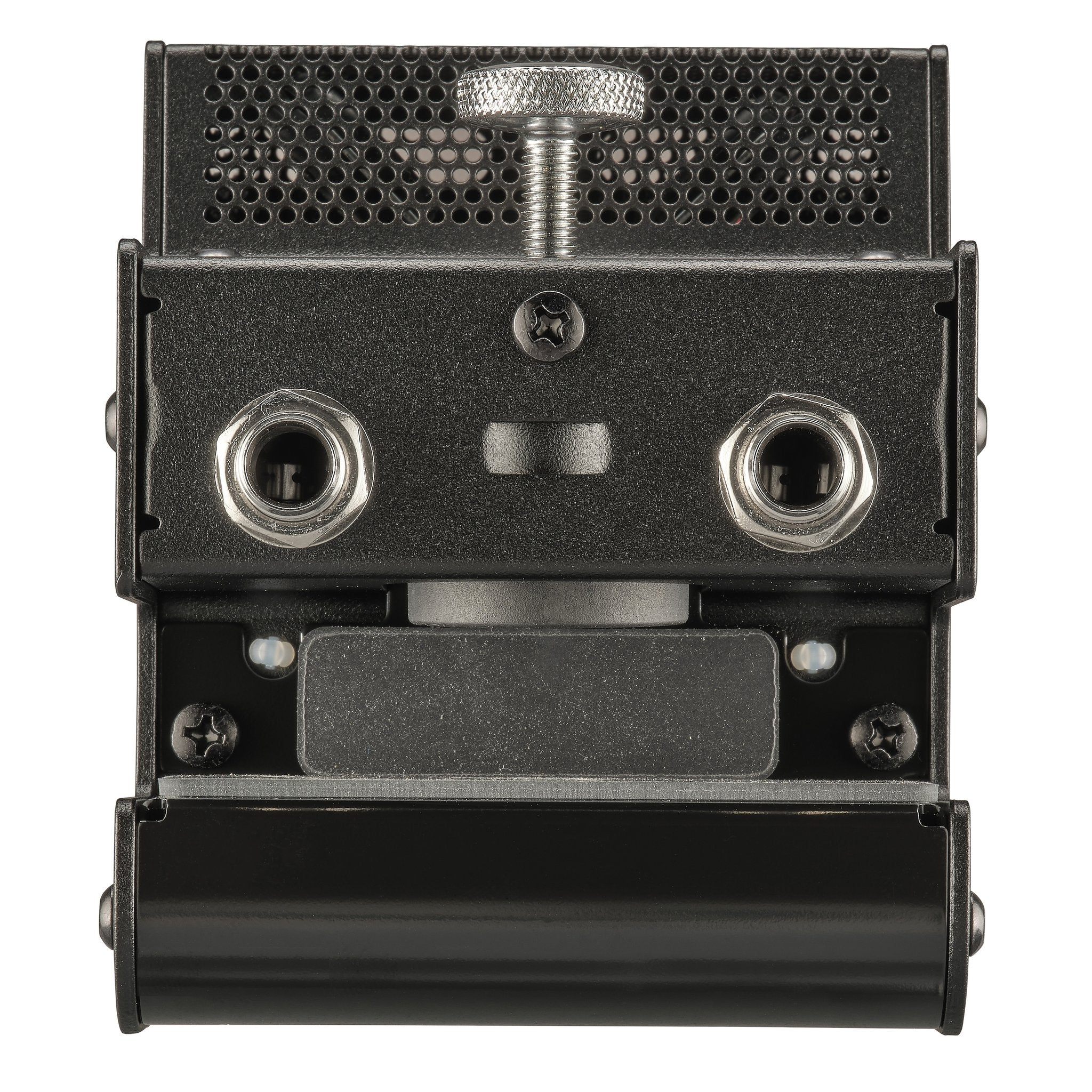

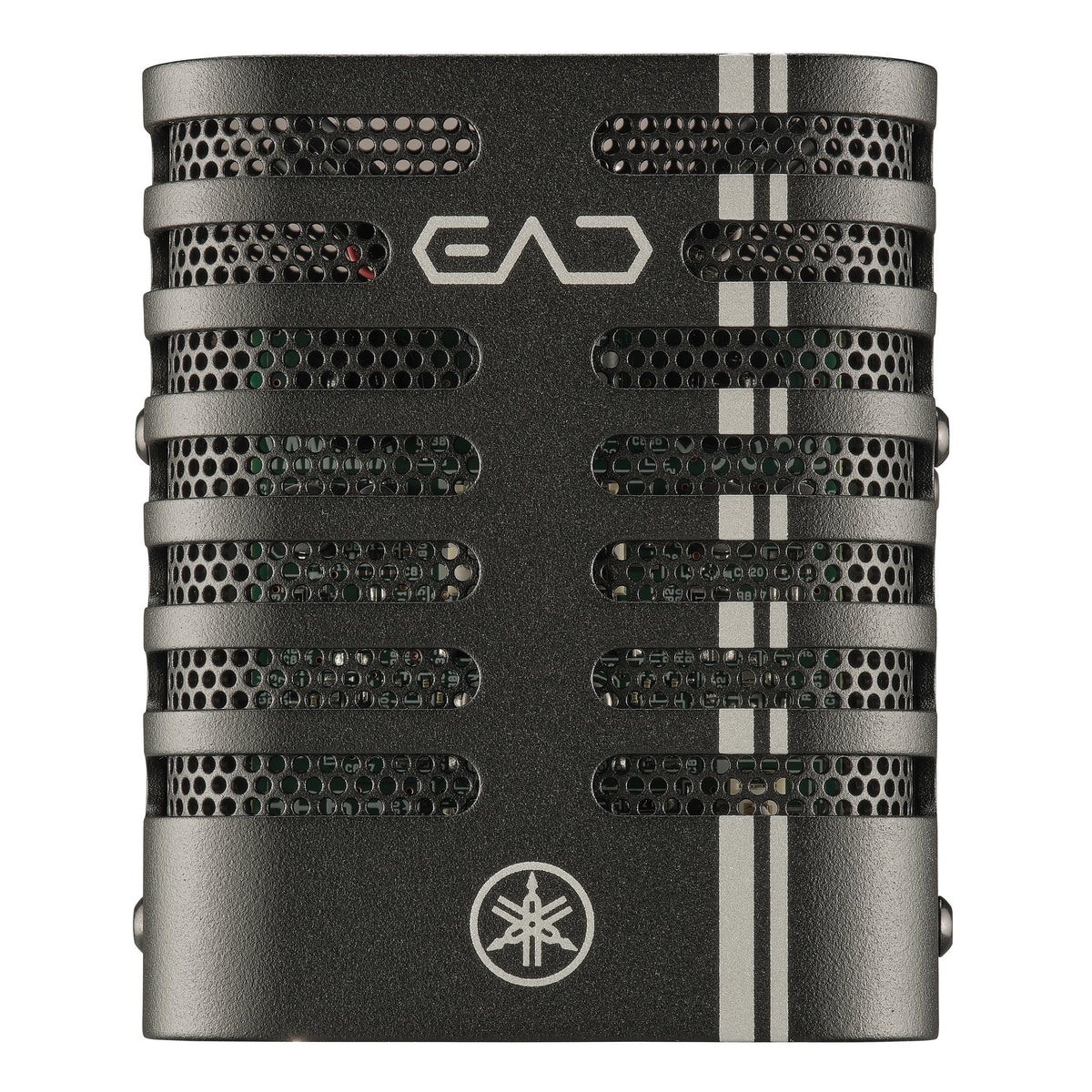

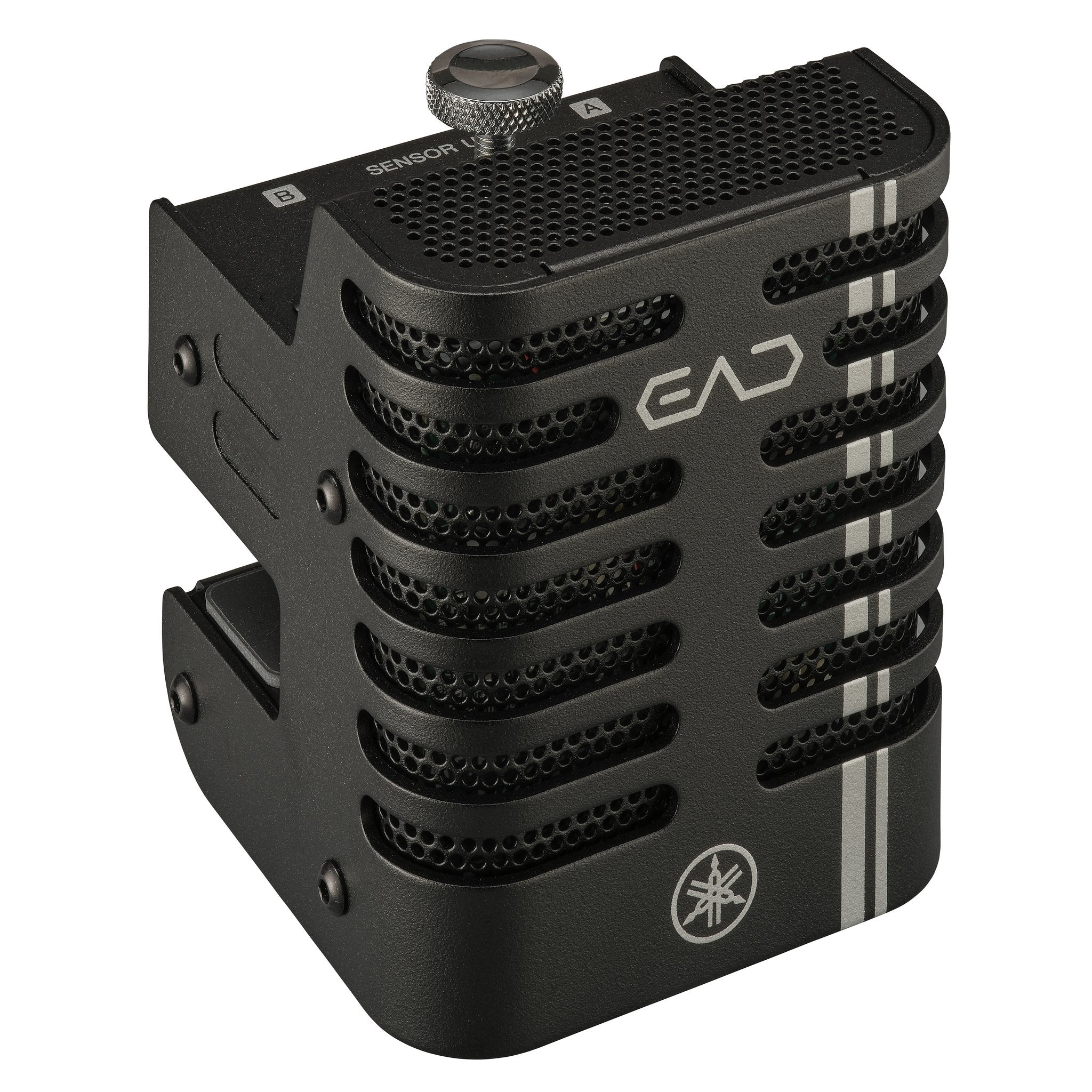

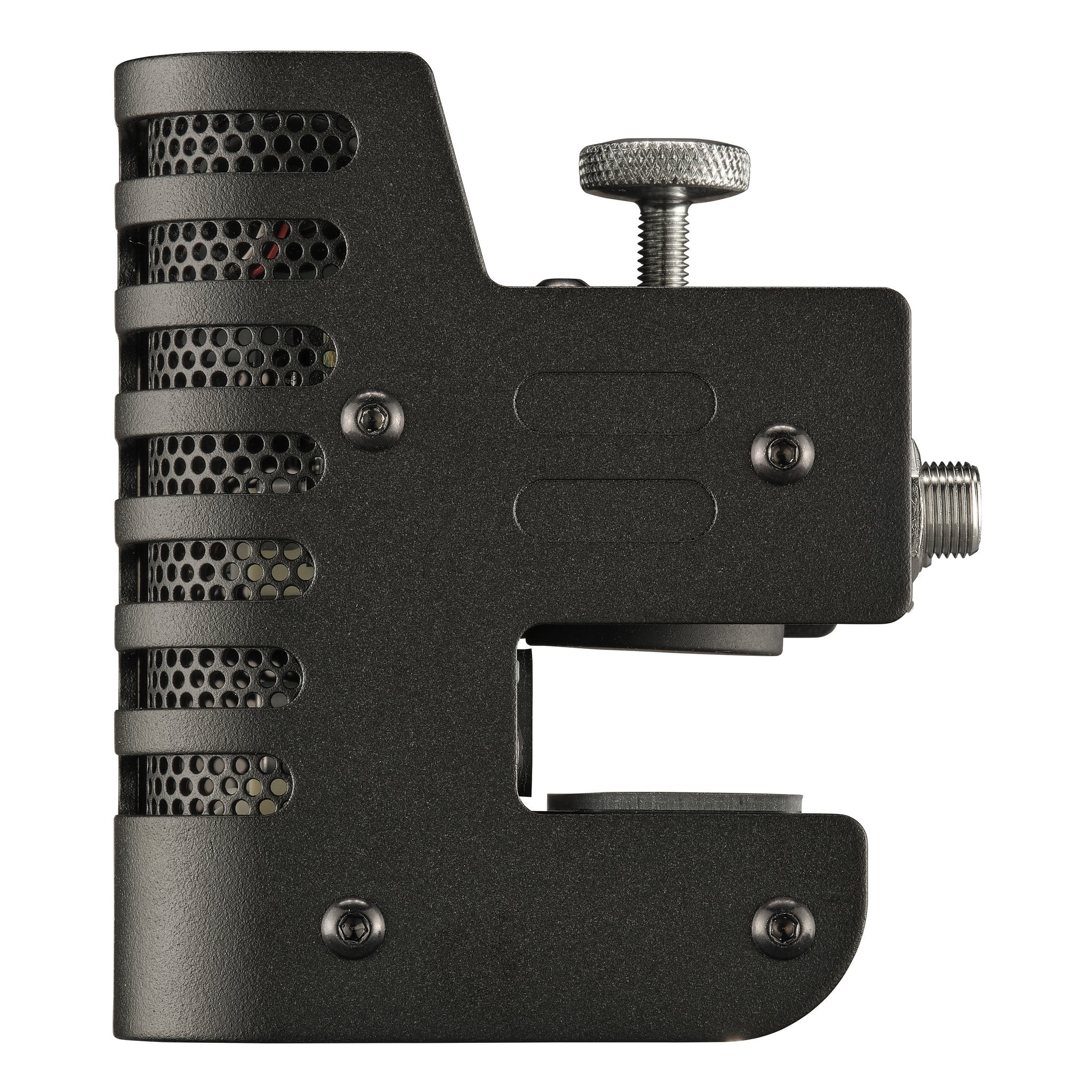

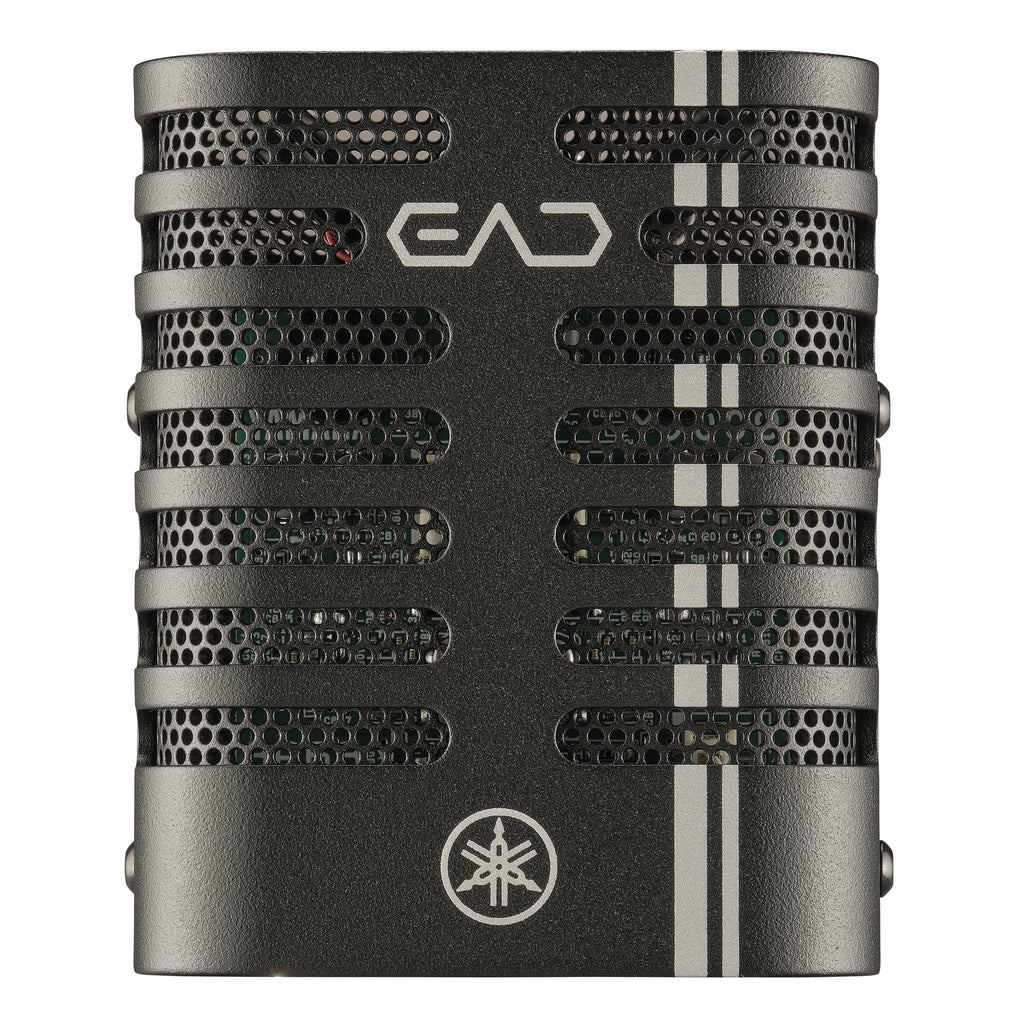

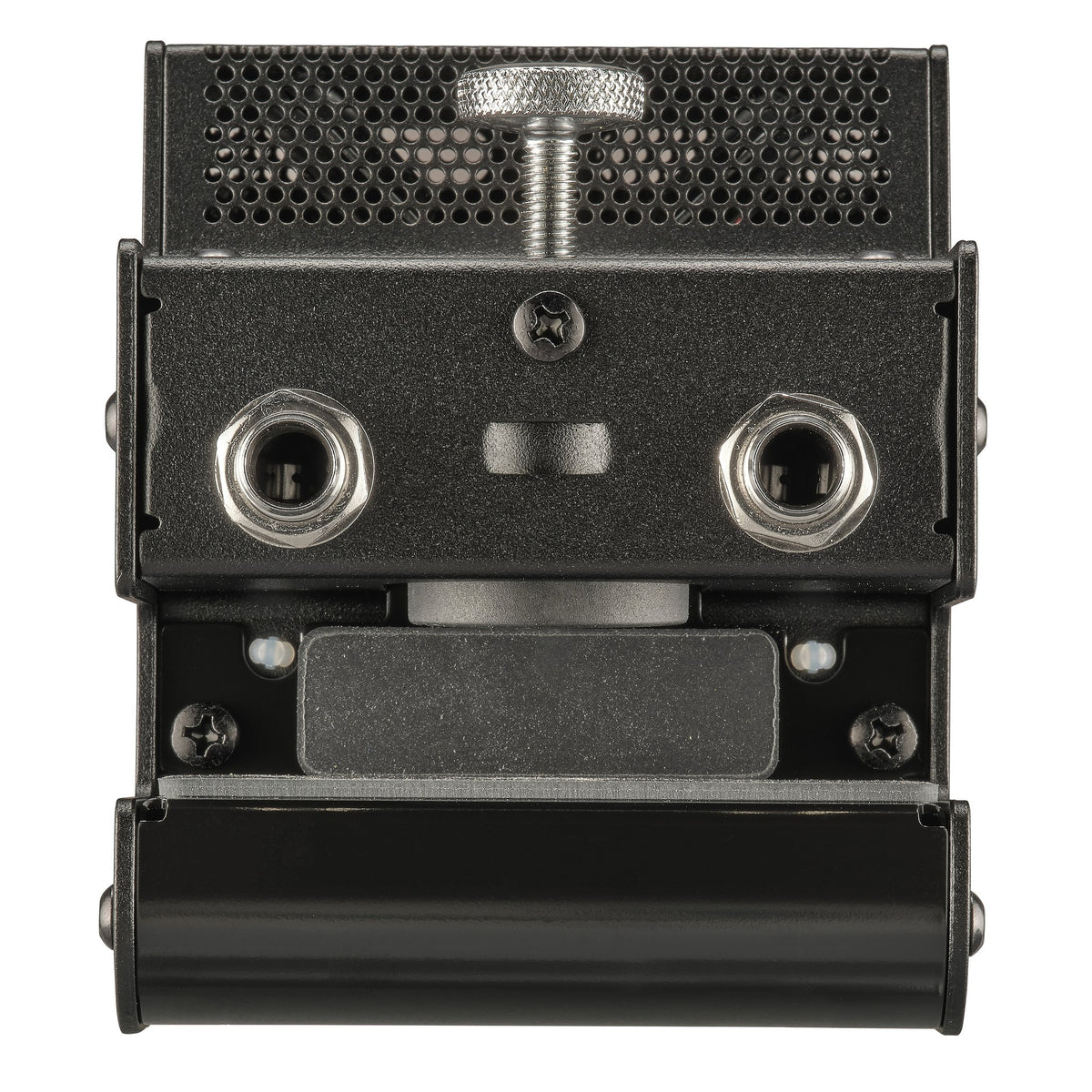

The improved sensor unit attaches effortlessly to virtually any acoustic bass drum hoop, ensuring a high-quality stereo image of the entire kit. Beyond its microphone functionality, the sensor unit includes a dedicated kick-trigger, converting each bass drum strike into a precise trigger signal for the EAD20 module. This allows for seamless layering of samples in perfect sync with acoustic playing.

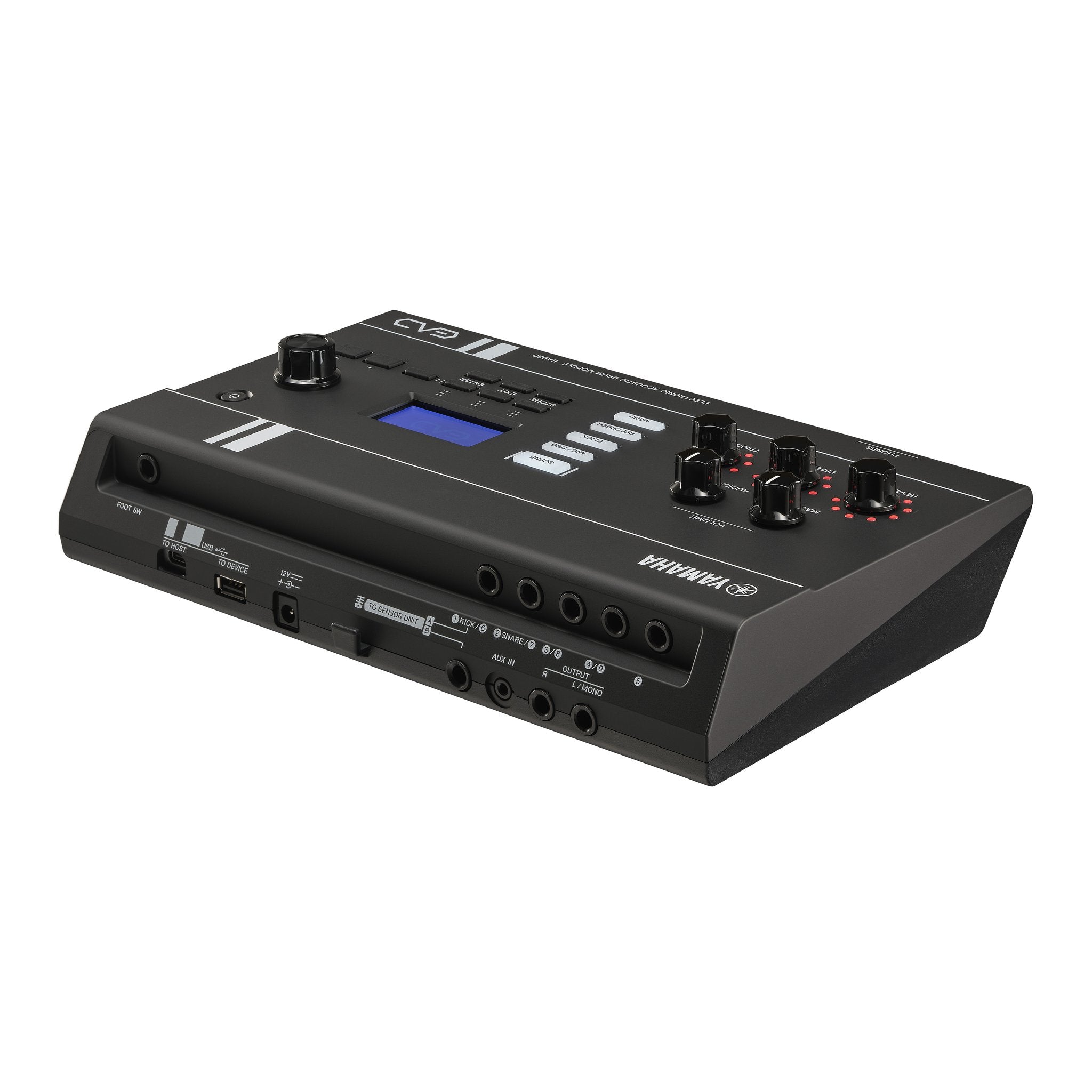

With six inputs and support for up to nine triggers (via splitters), the EAD20 routes signals to ¼” stereo outputs or a single mono output, ensuring compatibility with a wide range of stages and studios. This versatility makes the EAD20 ideal for intermediate to advanced drummers seeking to record or perform in diverse environments, from small studios to large stages, and even for virtual lessons or single recordings.

The EAD20 further enriches performances and unlocks new creative possibilities through its free companion apps and built-in features. The iOS/Android Rec’n’Share app enables users to capture, edit, and share videos of their drum performances, while the EAD Touch App simplifies module navigation and editing. Packed with 2,203 sounds, 252 digital effects, and features like a looper, sampler, and playback functionality, the EAD20 enhances every aspect of drumming—from practice and recording to live performance—while opening unique avenues for creative expression.

Easy To Use

• Everything drummers need for great sounding recording is in the box and the module has an intuitive and easy to use interface
• Assignable Kit Modifier knobs for quick adjustments to reverb, effects or other drum settings

High Quality Sound:

• Quick setup for miking any acoustic drum set, combing sounds from flagship DTX electronic drums with 512 Polyphony
• High-quality SWX100 sound engine shared with EAD50, plus a stereo condenser microphone provide a professional-sounding image of your kit.
• Mic/trigger uses Japanese-built custom capsules known for added clarity and precision.

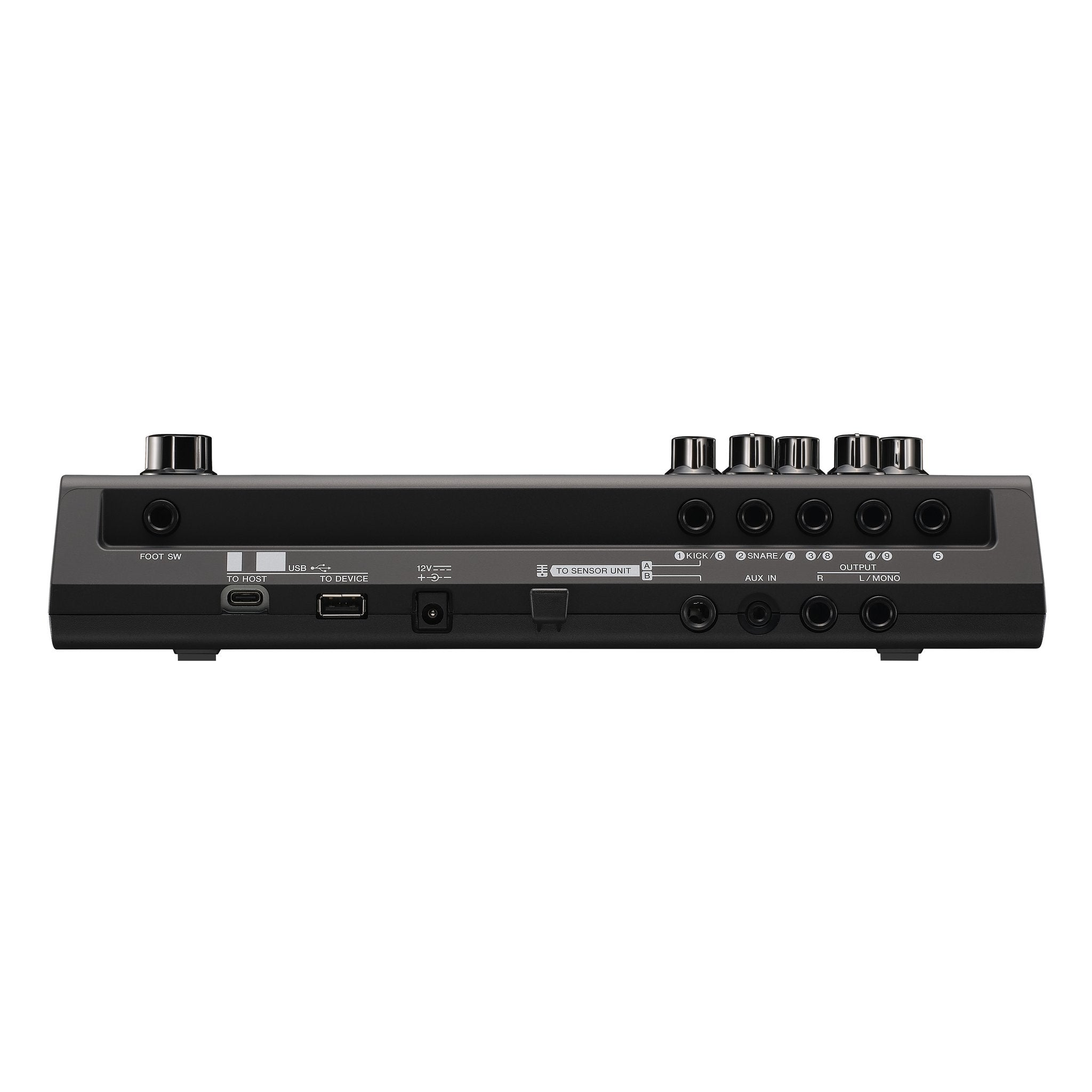

Connectivity

• 8in/10out USB Audio Interface allows you to record sessions directly to computer
• 4 additional splitable trigger inputs (for up to 9 triggers) enable electronic drum set-up, plus foot trigger
• Use the gear you prefer without worrying about compatibility. Integrated trigger inputs provide high performance across a wide range of pads, even those not made by Yamaha, including single-zone, dual-zone, three-zone and multi-piezo pads
• Midi Out for easy access to DAW

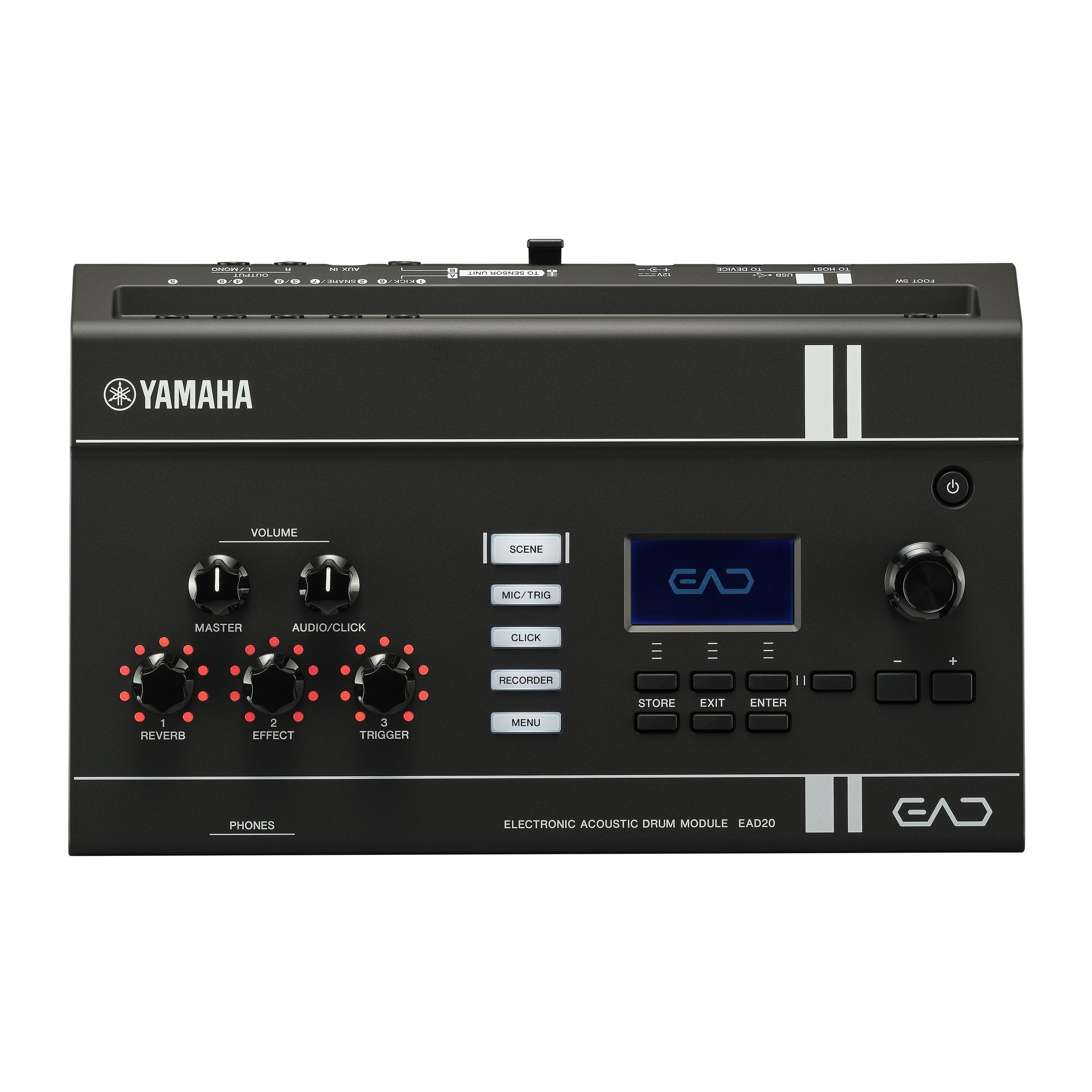

• LED rotary fader knobs for on-the-fly adjustments and assignable Kit Modifier knobs for quick adjustments to reverb, effects or other drum settings
• USB Trigger Link Function allows loading samples, back up/scene data and supports external devices

Additional Features

• Looper, Sampler and Playback features allow for new levels of creativity in drum performances
• Apps make it easier, with free iOS/Android app "Rec n Share," allowing you to shoot, edit, and upload your performances, plus the EAD Touch app for easier editing and data management
• Module includes 251 scenes (51 preset kits, 200 user kits), 2,203 voices, and 252 digital effects
